技术规格
- 分辨率：1080P（1920×1080）, 支持4K
- 亮度：650 ANSI流明
- 光源：LED，寿命30000小时
- 投影比：0.19:1
- 推荐投影尺寸：40″-120″
- 对比度：1300:1
- 投影畸变：小于0.8%
- 光均匀性：大于85%
- 自动对焦与梯形校正：垂直+水平
智能连接
内置Android 11操作系统（可选ATV版本），支持MiraCast/DLNA/Airplay智能屏幕镜像，以及HDMI输入，轻松实现无线或有线连接。
接口与配件

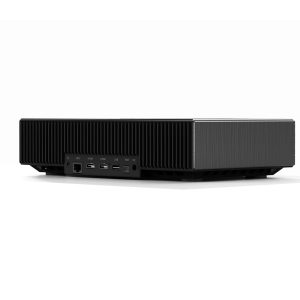

提供丰富的接口选项，包括HDMI x2, USB x2, 3.5mm音频接口x1, RJ45以太网接口x1, DC电源输入x1, SPDIF输出x1。配件包括HDMI线和用户手册。
外观设计
中性色彩设计，提供太空灰/金色选项，尺寸309x186x68mm，时尚而不失专业感。
详细规格参数
| DLP Optical Light Engin |
Display Technology | DLP(0.23”DMD) |
| Native Resolution | 1080P(1920X1080) | |
| Supported Resolution | 4K | |
| Brightness | 650ANSI | |
| Light Source | LED | |
| Light lifetime | 30000H | |
| Projection Ratio | 0.19:1 | |
| Projection Size (Recommend) | 40”-120” | |
| Aspect Ratio | 16:9 | |
| Contrast Ratio | 1300:1 | |
| Projection Distortion | ＜0.8% | |
| Light Uniformity | ＞85% | |
| Lens Focus Mode | Auto Focus | |
| Keystone Correction | Auto vertical + horizontal | |
| Projection Mode | Wall | |
| OFFSET | 100% | |
| 3D | / | |
| PCBA | Operation System | Android 11(Optional for ATV version) |
| CPU | Allwinner H713 | |
| GPU | Mali G31 | |
| Memory RAM | 2GB | |
| Flash Storage | 32GB | |
| WIFI | Dual 2.4G/5G | |
| Bluetooth | BT5.2 | |
| Operation | Button+Remote | |
| Smart Screen Mirroring | MiraCast/DLNA/Airplay | |
| Mirroring Sourcing System | HDMI | |
| Internal Speaker | 5WX2 | |
| Internal Battery Capacity | / | |
| Battery Play Time (Typical) | / | |
| Whole Power Consumption | 50W | |
| Noise | 30DB | |
| Input Power | DC 12V 5A | |
| Supported VideoFormat | H.264, H.265, Vp9, MPEG1, MPEG2, MPEG4, H.263, XVID, VP8 | |
| Supported Music Format | MP3, OGG, FLAC, APE, etc | |
| Supported Image Format | jpg, png, bmp, etc |
| Interface | HDMI inX2 USBX2 3.5mm JackX1 RJ45X1 DC inX1 SPDIF OUTX1 |
|
| Accessory | Remote Adaptor HDMI Cable User Manual |
|
| Outlook | Neutral Color | Space Grey/Gold |
| Projector Size | Weight | 309X186X68mm | |
