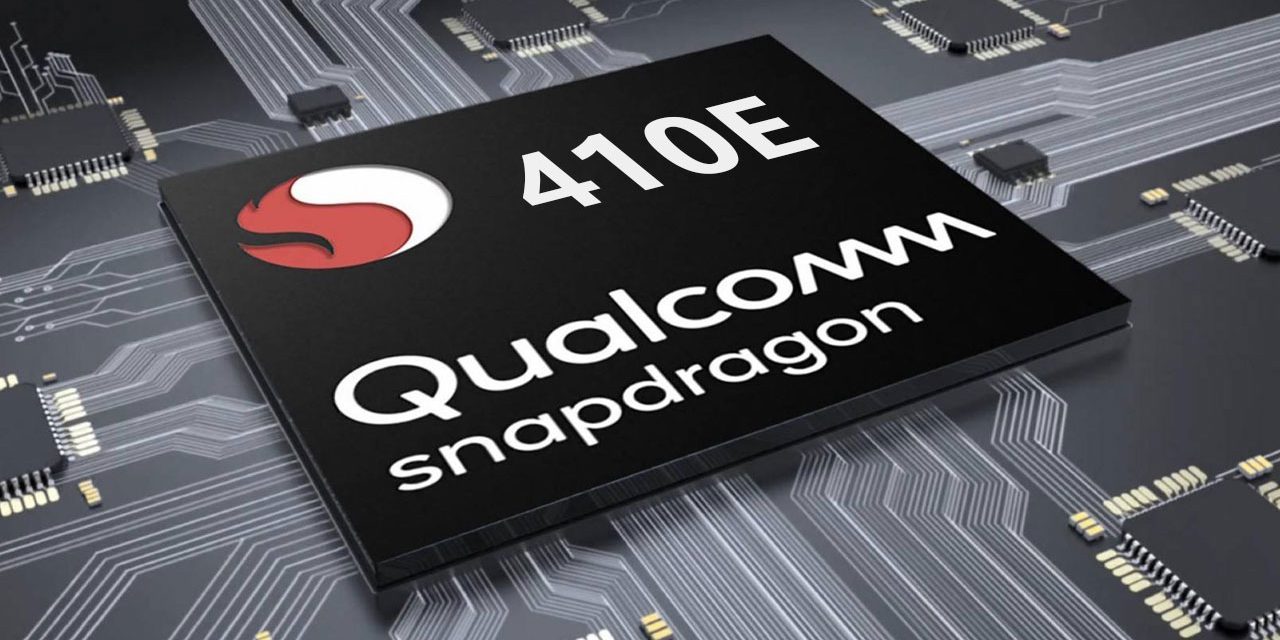

The Qualcomm® Snapdragon 410E(APQ8016E) application processor is an ideal solution for IoT applications requiring computing horsepower and integrated Wi-Fi and Bluetooth connectivity, such as connected homes, building automation, industrial control, digital signage, smart surveillance and other IoT devices.
Integrated solution for smaller designs
Integrated CPU, GPU, Wi-Fi/WLAN, Bluetooth, DSP and memory integrated into a single SoC helps reduce system complexity while supporting small form factor designs.
Powerful processing for industrial and home automation
Superior CPU architecture is capable of both 32-bit and 64-bit processing—designed for an improved user experience.
HD video encode and decode for smart surveillance cameras
The video core of Qualcomm APQ8016E supports popular codecs including H.264, MPEG4, MPEG2 and VC1 for better software compatibility.
3D graphics and multimedia for digital media and TV dongles
Qualcomm® Adreno™ 306 GPU supports OpenGL ES 3.0, and DirectX 9.3 for next-generation media players.
Features
-
Quad-core Arm Cortex A53 up to 1.2GHz with both 32-bit and 64-bit support — commercialized in millions of mobile devices worldwide
-
Arm v8-A ISA offers an efficient instruction set
-
Adreno A306 3D GPU (up to 400MHz) with support for multiple APIs including: OpenGL ES 3.0, OpenCL, DirectX, content security, and decreased power consumption
-
Qualcomm® Hexagon™ QDSP6 V5 (up to 691MHz) for differentiated signal processing
-
13MP camera support with Wavelet Noise Reduction and JPEG Decoder done in hardware
-
Worldwide ecosystem of vendors, customers, developers and embedded device OEMs
Specifications
CPU
CPU Clock Speed: Up to 1.2 GHz
CPU Cores: 4x ARM Cortex A53, Quad-core CPU
CPU Architecture: 64-bit, 32-bit
DSP
DSP Technology: Qualcomm® Hexagon™ QDSP6 V5
DSP Clock Speed: Up to 691 MHz
Wi-Fi
Wi-Fi Standards: 802.11a/b/g, 802.11n
Bluetooth
Bluetooth Version: Bluetooth 4.1
Bluetooth Technology: Bluetooth Low Energy
Location
Satellite Systems Support: GPS
USB
USB Version: USB 2.0
Camera
Image Signal Processor: Image Signal Processor (ISP)
Single Camera: Up to 13 MP
Video Capture (30 FPS): 1080p video capture
Video
Video Playback: Up to 1080p video playback
Codec Support: H.264 (AVC)
Display
Max External Display: Up to 1080p
Display Pixels: 1920×1200
GPU
GPU Name: Qualcomm® Adreno™ 306 GPU
API Support: OpenGL ES 3.0
Security Support
Security Features: Secure Boot, Secure code signing service
Memory
Memory speed: 533MHz
Memory Type: LPDDR2, LPDDR3
Storage
eMMC: eMMC 4.5
SD: SD 3.0 (UHS-I)
Interface
Supported Interfaces: LVDS, HSIC, HDMI, MIPI-CSI, MIPI-DSI, SDIO, USB 2.0
Package
Package Type: NSP
Pitch: 0.4mm Pitch
Package Size: 12 x 14 mm
