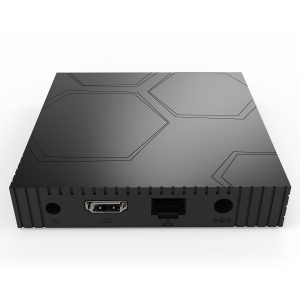

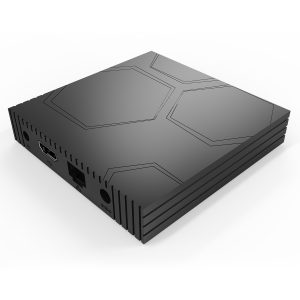

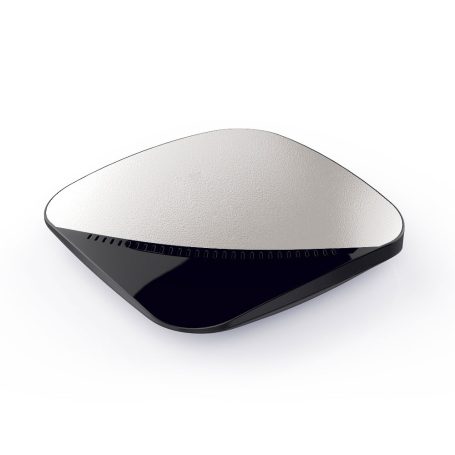

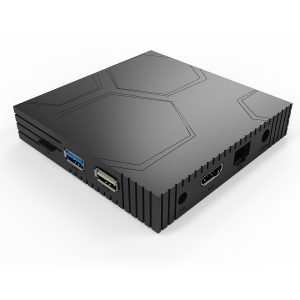

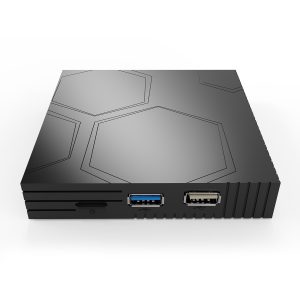

新款采用RK3318芯片方案的智能电视盒子,运行纯净的安卓9.0系统,可自由安装卸载APP。RK3318是瑞芯微面向家庭影音市场推出的64位处理器,支持4K视频的硬解码和视频输出,支持HDR10,电视盒子内置了蓝牙和双屏WiFi模块,方便无线设备连接。支持USB3.0接口,除了作为高清播放器使用,也可作为数字标牌控播主机、打印机服务器使用。
此款智能电视盒子的PCBA已经过多次量产,品质稳定,可根据用户的需求定制产品,支持OEM和ODM定制。
RK3318 TV Box Hardware Specifications | |||||||||
Chipset | RK3318 Quad-Core 64bit Cortex-A53 | ||||||||
GPU | Penta-Core Mali-450 Up to 750Mhz+ | ||||||||
FLASH | EMMC 32/64GB | ||||||||
SDRAM | 2/4GB | ||||||||
Power Supply Specifications | |||||||||
◆ Power Supply | DC 5V/2A | ||||||||
◆Power Indicator (LED) | Power ON :blue; Standby :Red | ||||||||
Main Features | |||||||||
◆OS | Android 9.0 | ||||||||
◆ Support Decoder format | 4K VP9 Video decoder, H.265/H.264 video decoder 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) |
||||||||
◆ Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg | ||||||||
◆ Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE | ||||||||
◆ Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF | ||||||||
◆ HDR | HDR10 | ||||||||
◆ USB | USB3.0*1,USB2.0*1 | ||||||||
◆ DisplayPort | HDMI | ||||||||
◆ Card reader | Micro SD cards ,Maximum support 64G | ||||||||
◆ HDD file system | FAT16/FAT32/NTFS | ||||||||
◆ Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB | ||||||||
◆ High Definition video output | 4K (4096×2160 pixel ) | ||||||||
◆ OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages | ||||||||
◆ LAN | Ethernet:10/100M standard RJ-45 | ||||||||
◆ Wireless | 2.4G /5G dual-band Wifi | ||||||||
◆ Bluetooth | V4.0 | ||||||||
◆ Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle | ||||||||
◆ HDMI | HDMI 2.0a for 4k@60Hz | ||||||||
◆SPDIF/IEC958 | Optical | ||||||||
Software Specifications | |||||||||
◆ Network Function | KODI 18.0 ,Neflix,Vudu,Skype chatting,Picasa,Flicker,Youtube,Facebook,Online movies,etc | ||||||||
◆ Other feature | Free Internet searching,thousands of android applications,many kinds of games,etc. | ||||||||
◆ Accessories | Power adaptor,HDMI cable,user manual ,remote | ||||||||
◆Option | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle, |
