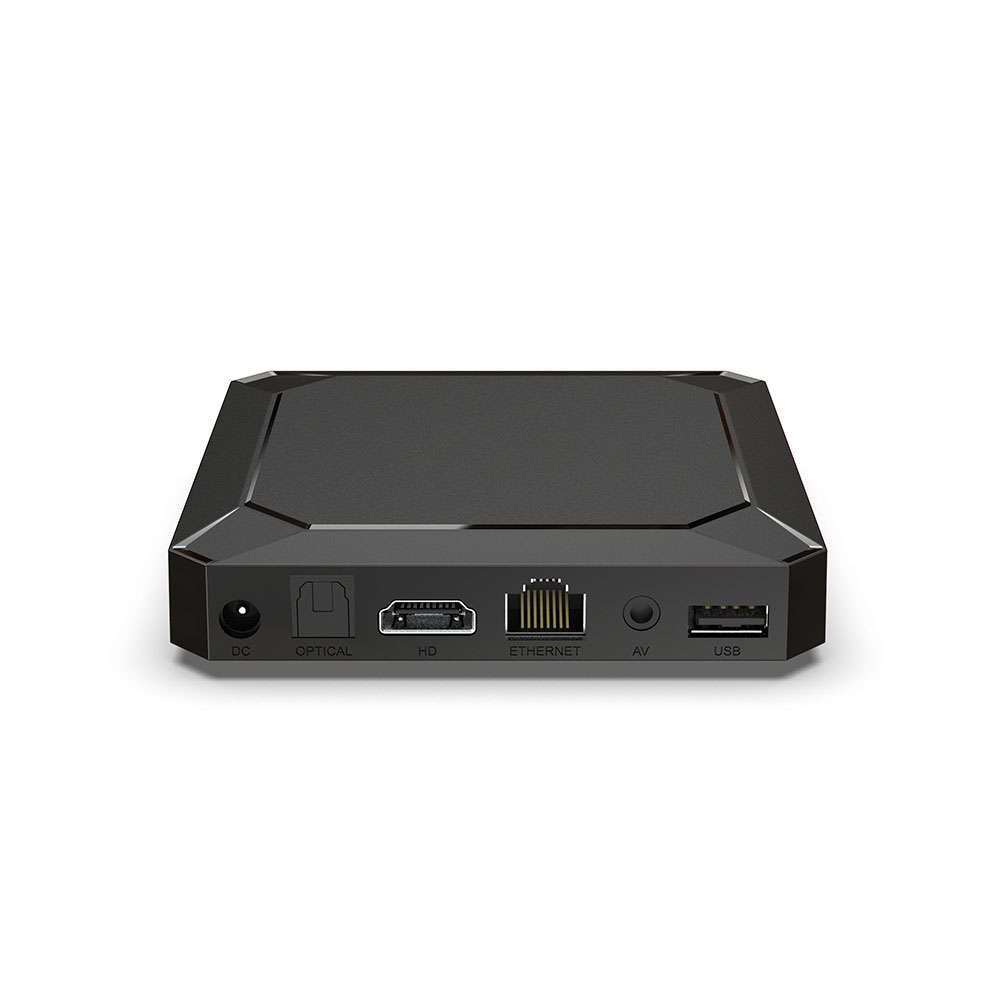

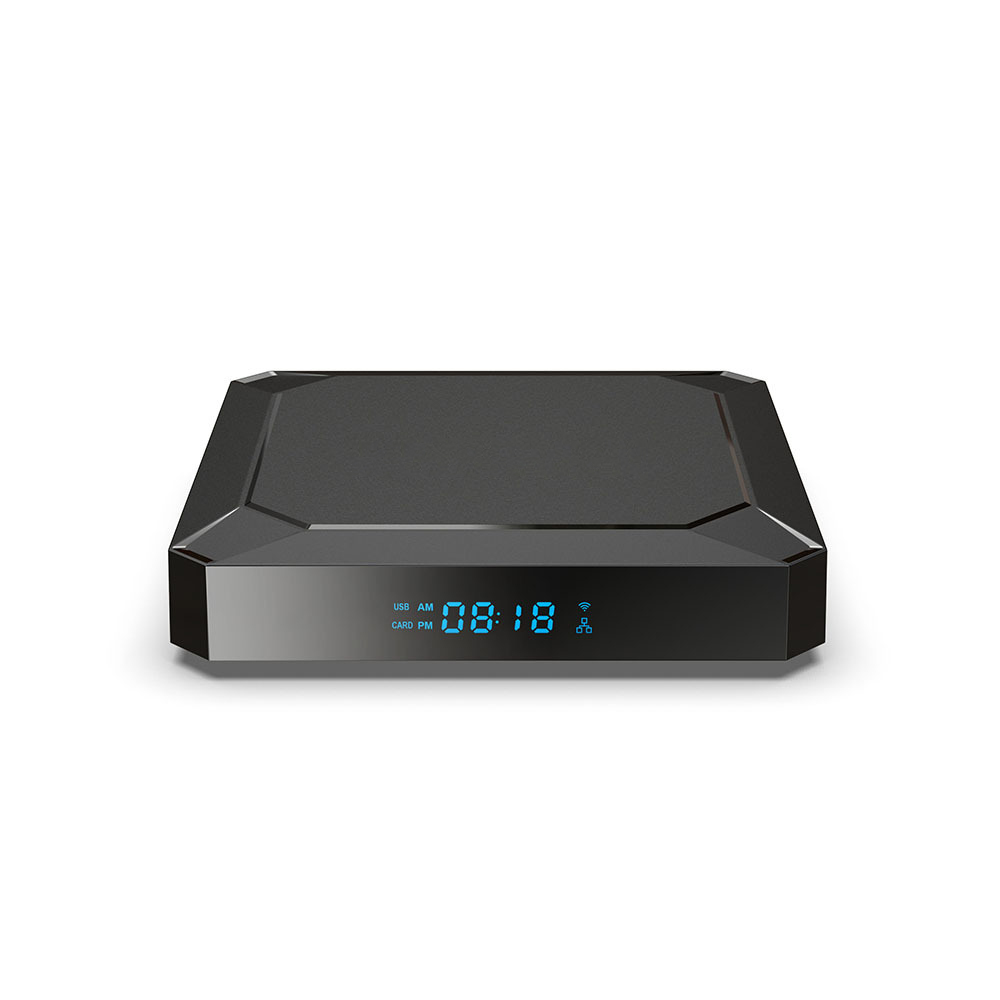

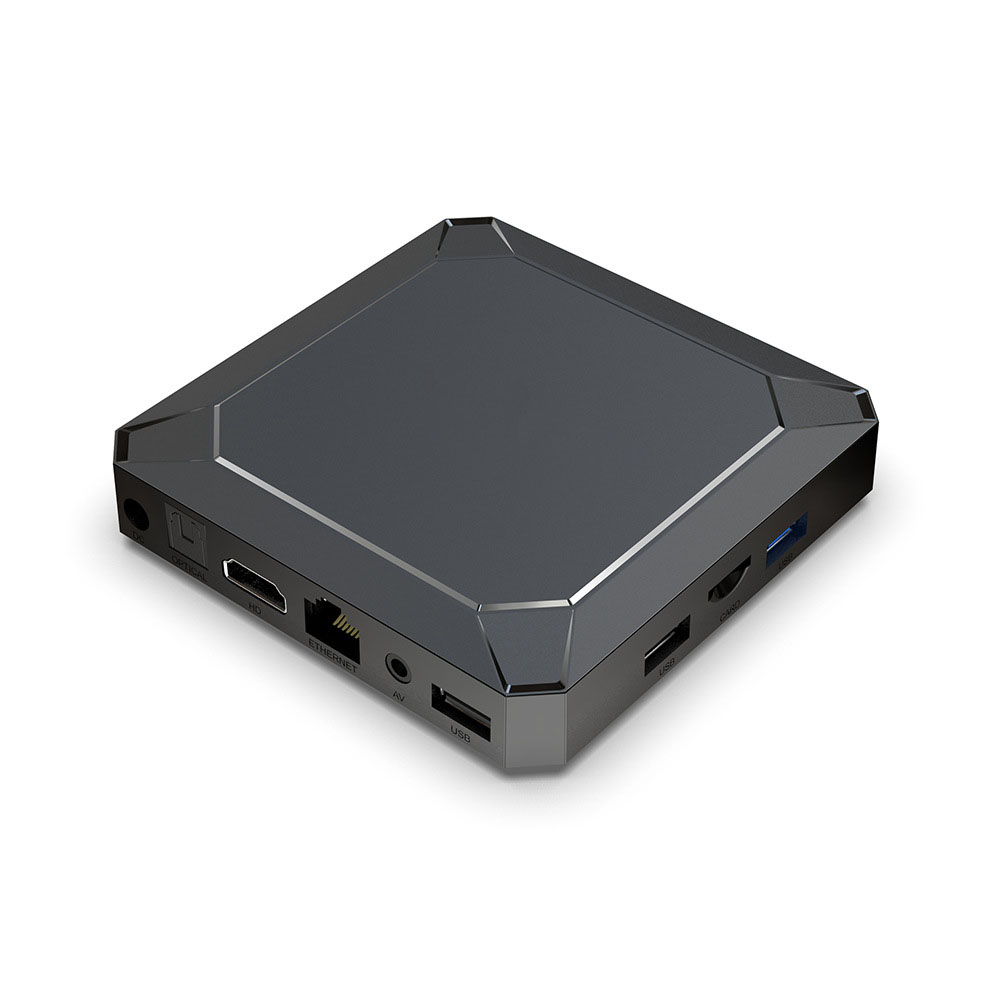

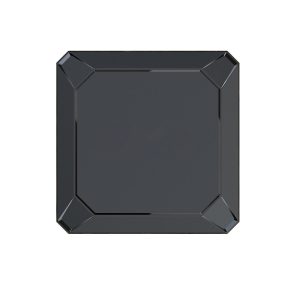

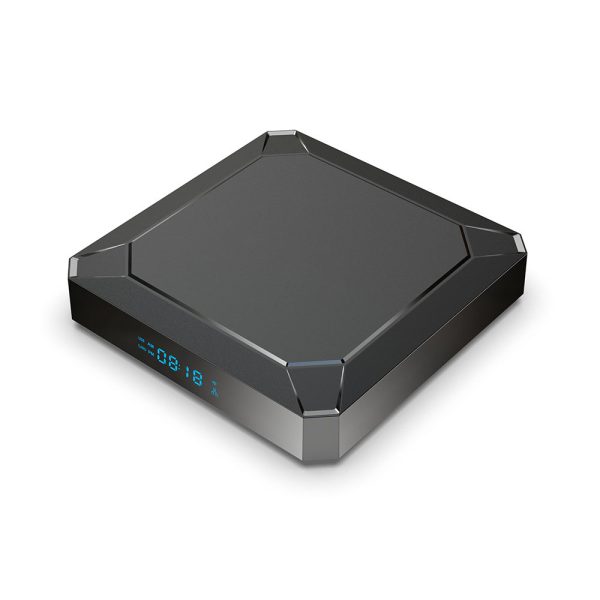

一款采用瑞芯微RK3528A芯片方案的OTT BOX（电视盒子），支持4K视频解码输出，搭载开放的安卓13操作系统，可自由安装卸载软件。此款机顶盒性价比高，专为外贸市场打造，默认语言为英文。预置安卓原生态系统，描述以英文为主，可支持中英文以及多国各种语言设置。内置WiFi6模块，支持千兆网络，可为用户提供优秀的流媒体播放体验。
| Basic parameters RK3528A OTT BOX | ||||
| CPU | Chipset | RK3528A | ||
| Architecture | Quad Core ARM Cortex A53 | |||
| GPU | Chipset | ARM Mali-450 GPU | ||
| Architecture | OpenGL ES 1.1/2.0 and OpenVG 1.1 support | |||
| RAM | Capacity | 2GB (4GB Optional) | ||
| ROM | Capacity | 16GB (32/64/128GB Optional) | ||
| External storage | USB Storage Devices | Supported | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 13 | ||
| Language | Multi-Language | |||
| Multimedia | Video | * Video Decoder | ||
| H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps | ||||
| H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps | ||||
| AVS2 4KX2K @60fps | ||||
| MPEG-1, Main profile, up to 1080P @ 60fps | ||||
| MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps | ||||
| MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps | ||||
| AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps | ||||
| AVS-P16 (AVS+), up to 1080P @ 60fps | ||||
| H.263, up to 576P @ 60fps | ||||
| VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps | ||||
| * Video Encoder | ||||
| Support video encoder for H.264, HP@level4.2 | ||||
| H.264 maximum frame rate is up to 1920×1080 @60fps | ||||
| Capable of encoding HEVC Main Profile @ L4.1 High-tier | ||||
| H.265 resolution and frame rate are up to 1920×1080 @60fps | ||||
| JPEG encoder included | ||||
| Audio | Serial Audio Interface | |||
| SPDIF | ||||
| Audio CODEC | ||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n / ac / ax | ||
| Frequency | Support 2.4GHz/5GHz WiFi 6 | |||
| Antenna Type | Single antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K*2K UHD Output, HDMI 1.4/2.X | ||
| IR Reciver | On board | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | USB3.0 *1 USB2.0 *2 |
||
| Ethernet | Ethernet | 100M Ethernet（1000M Optional) | ||
| Appearance | ||||
| Body Material | Plastic | |||
| Color | Black | |||
| Size | 105*105*18.5mm | |||
| Weight | / | |||
| Cerifications(For Unit) | ||||
| Standard | / | |||
| / | ||||
| Others | Optional | |||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 205*140*50mm | |
| Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm） | |
| Remote control | *1 | Qty Per Carton(pcs) | 20 | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.4Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 8.5Kg | |
此款RK3528A智能电视盒子主要面向品牌商、运营商等B端客户，可为客户提供全面的定制服务。支持固件定制、修改开机Logo、动画、预装app等，可按需求修改开机启动应用、产品外观及包装定制等，更多具体定制需求可点击提交需求。
