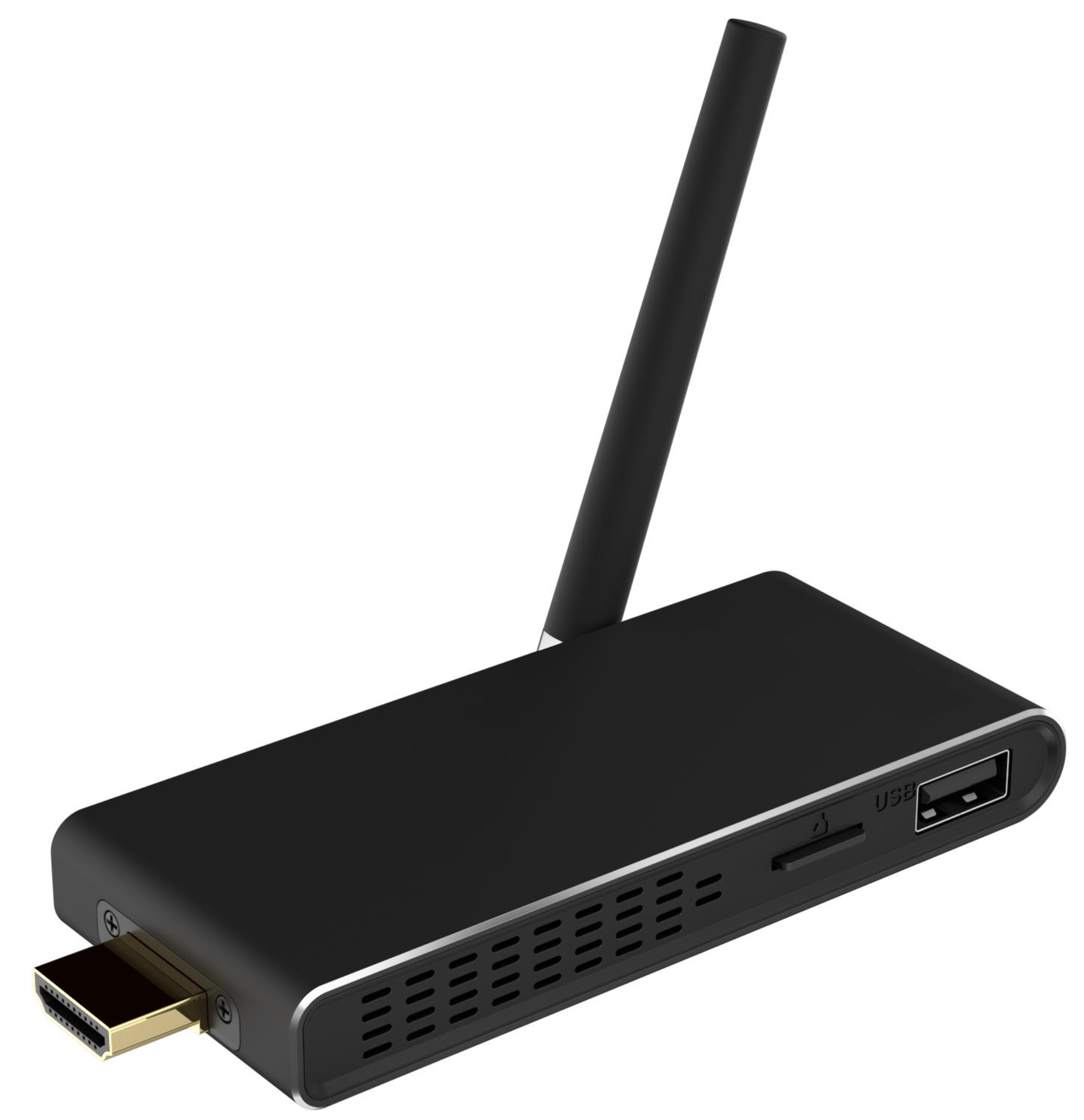

采用晶晨S905X方案的安卓主机，适合作为数字标牌和广告机的解码控播主机使用。S905X支持主流4K视频的硬解码，采用HDMI2.0接口直接输出，支持4K@60fps的输出。采用金属机身，散热性能好，搭载高灵敏的外置WiFi天线，信号稳定。体积小巧，直接查到显示设备的HDMI接口即可，可直接从显示设备取电，安装方便。运行开放的安卓系统，适合软件拓展，可根据客户需求定制系统和硬件配置。可定制专属的系统固件，预装软件，支持OEM品牌定制。

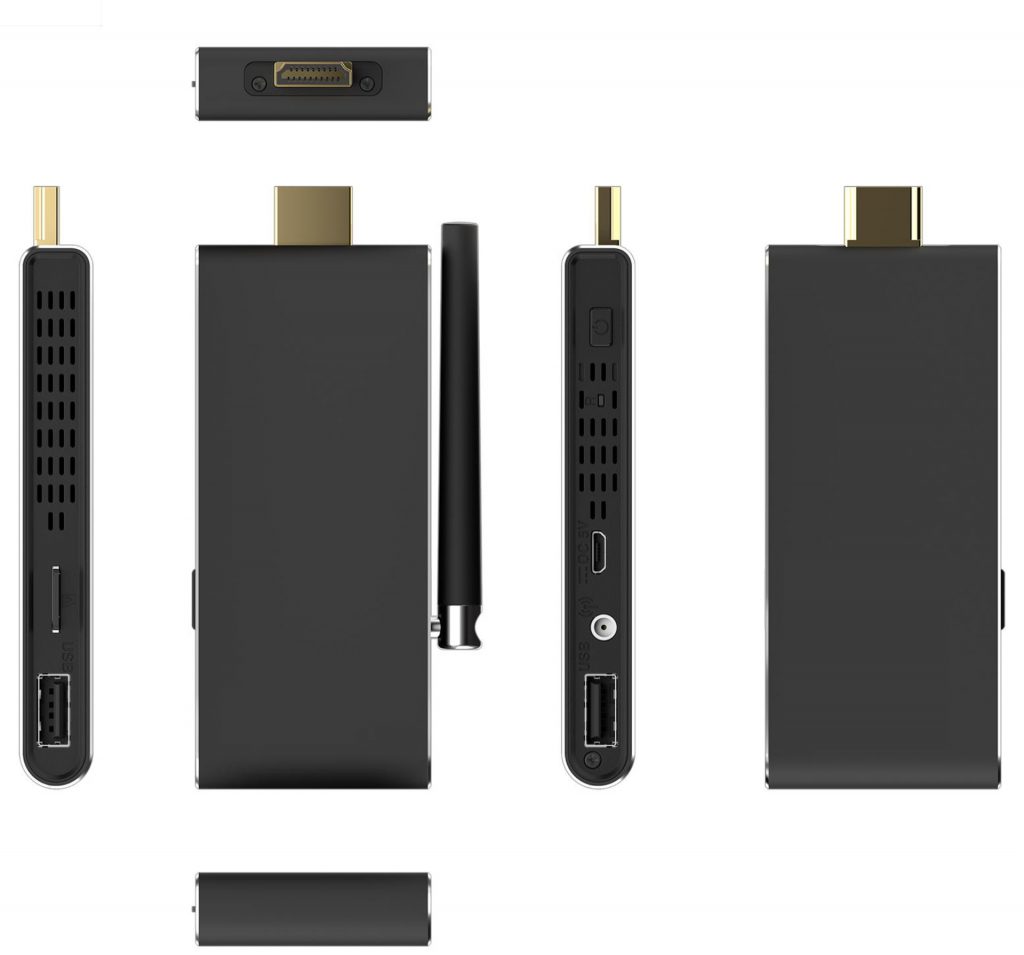

4K安卓控播主机六面图
| Solution(方案) | Amlogic S905X support 2K/4K media decoder | |
| CPU(处理器) | A53 Quad-core up to 2.0Ghz | |
| GPU(显卡) | Mali 450 | |
| OS(操作系统) | Android 6.01 or 7.1.1 | |
| Memory(内存) | 1G DDR3 or 2G | |
| Flash(闪存) | 8G eMMc or 32G | |
| Wifi IEEE(无线) | 802.11 b/g/n 2.4Ghz(Default RTL8189,Support AP6212/AP6330/AP6335) | |
| BT(蓝牙) | (Options Support BT4.0+) | |
| Video output | UHD 3840*2160 or 1920*1080 | |
| Audio(音频) | Support DLNA,Miracast Protocol | |
| Video(视频) | MPEG-1/2 Audio Layer1/2/3/MP3/AAC/OGG/FLAC/APE | |
| Video decode | H.264 AVC HP@L5.1 up to4K*2K@60fps H2.64 MVC up to4K*2K@30fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 5P/MP/AP up to 1080P@60fps AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps(ISO-13818) MPEG-1 MP/HL up to 1080P@60fps(ISO-11172) Realvideo 8/9/10 up to 1080P WebM up to VGA Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixe resolution decoding(ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Support *.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats |
|
| Photo(图片) | JPEG/BMP/PNG/GIF | |
| Language (语言) | Multi-Language | |
| Power supply 电源适配器 |
Input 100~240V output DC 5V/2A | |
| Material（材质） | Metal(铝合金) | |
| Interface | USB*2 | |
| TF_card | ||
| HDMI cable optional | ||
| Micro_USB DC-IN | ||
产品尺寸
| machine size | 108*43*13mm |
