这款S905X2安卓智能网络播放器持高达4K@75帧的视频输出，支持主流格式的视频硬解码。S905X2 4K播放器运行开放的安卓8.1系统，可自由安装卸载软件，同时系统原生支持语音遥控功能。此款产品目前已经量产，主要面向外贸型客户，可根据用户需求定制，支持OEM和ODM订单。
Hardware Specifications
CPUAmlogic S905X2 Quad core ARM CortexA53 CPU
GPUMailG31 MP2 GPU
SDRAM4GB LPDDR4 ( 1~2GB Optional ) FLASH32GB Flash ( 8~32GB Optional )
WiFiBuilt in 2.4G/5G WiFi Support IEEE 802.11 b/g/n/acBlutoothBluetooth 4.1
LAN Ethernet10/100MMain FeaturesOSAndroid 8.1Video decorder
Hardware decoders
– VP9 Profile-2 up to 4Kx2K@60fps
– H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
– AVS2-P2 Profile up to 4Kx2K@60fps
– H.264 AVC HP@L5.1 up to 4Kx2K@30fps
– H.264 MVC up to 1080P@60fps
– MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
– WMV/VC-1 SP/MP/AP up to 1080P@60fps
– AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
– MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
– MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
– RealVideo 8/9/10 up to 1080P@60fps
Video encorderVideo/Picture Encoding
– Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate
– JPEG image encoding
–H.265/H.264 video encoding up to 1080P@60fps with low latency
HDR Dynamic HDR10, HDR10, HLG and Technicolor HDR processing3D Graphics
ARM Dvalin MP2 GPU4-wide warps, dual texture pipe, 2x 4-wide execution engines (EE)
Concurrent multi-core processing
OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 supportDRMOptional :Microsoft Playready，Verimatrix ,Google Widevine Level1
Supported:Google Widevine Level3
Decoder format HD MPEG1/2/4,H.265/HEVC , HD AVC/VC1,RM/RMVB,Xvid,RealVideo8/9/10Media
formatSupports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Music format Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 downmixing
Photo formatHD JPEG/BMP/GIF/PNG/TIFF
Network FunctionMiracast,,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.
Language:Chinese , English ,Germany ,Japanese, Korea etc. 24 languages
OTA Support OTA update

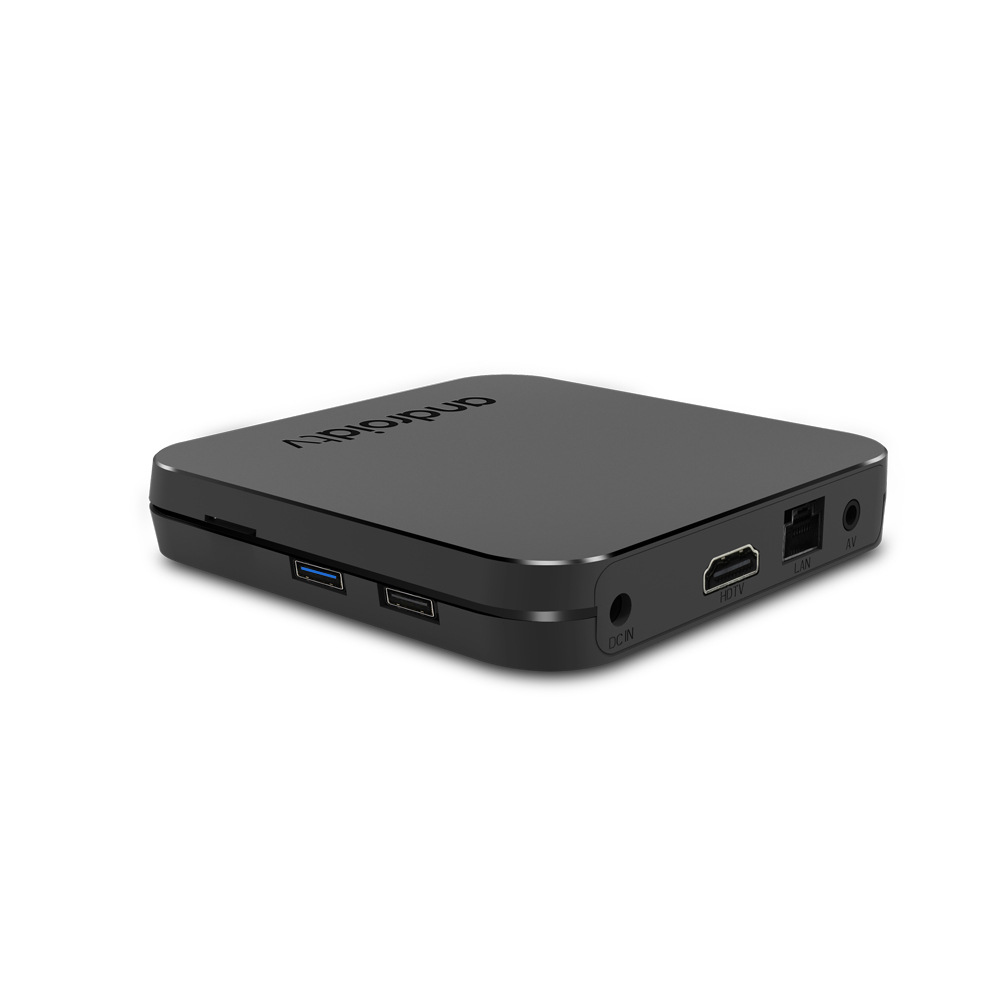

Port SpecificationsPort
1* HDMI 2.1 Dynamic HDR and HDCP 2.2, 4Kx2K@75 max resolution output
1* High speed USB 2.0,support U DISK and USB HDD1* Standard USB 3.0 1* TF CARD Support 1~32GB 1* 3.5 Phone out CVBS&L/R output 1* RJ45 LAN Ethernet 10M/100MPower
SupplyDC 5V/2ALED Indicator Power ON :blue; Standby :Red

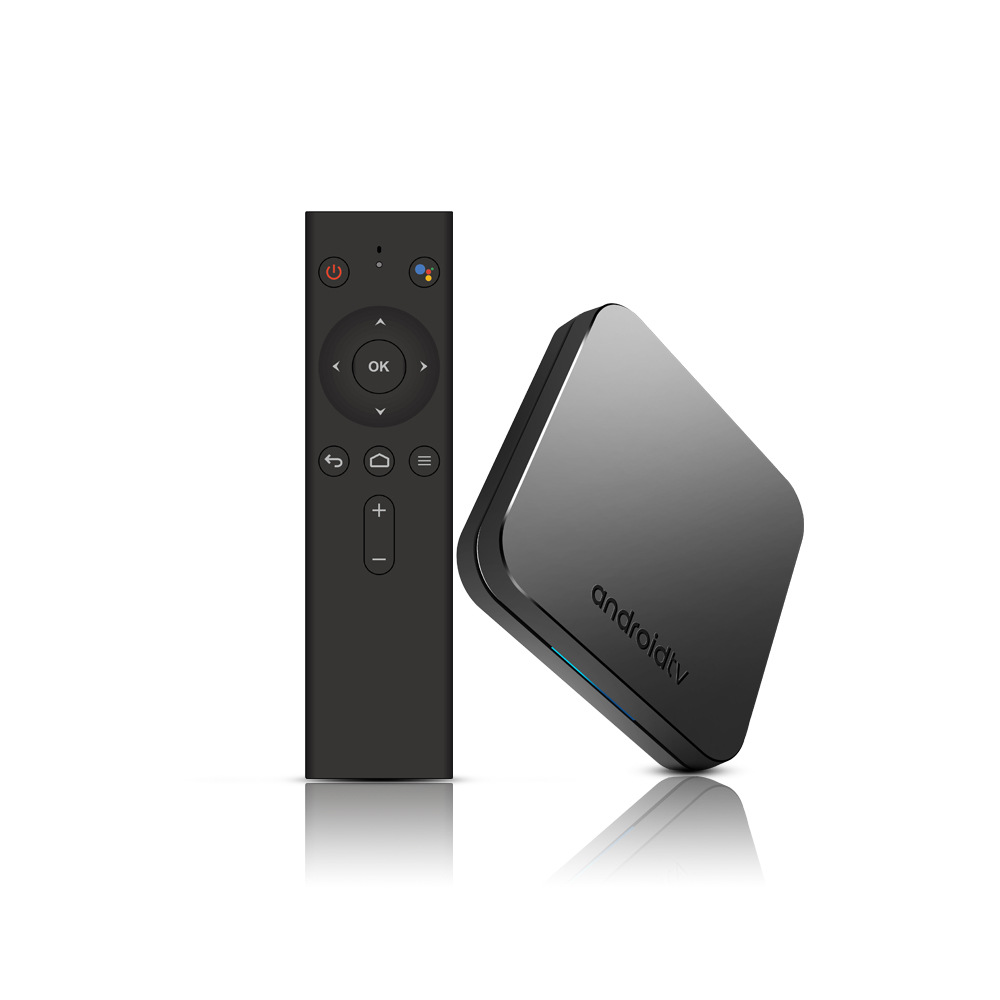

AccessoriesAccessories1* Adapter1* Gift Box1* IR remote control with Vioce ,BT1* HDMI Cable 1* User Manual
Loadingmachine size100x100x17.5mmPackaged size179x110x65mm machine weight0.15kg Packaged weight0.43kg
