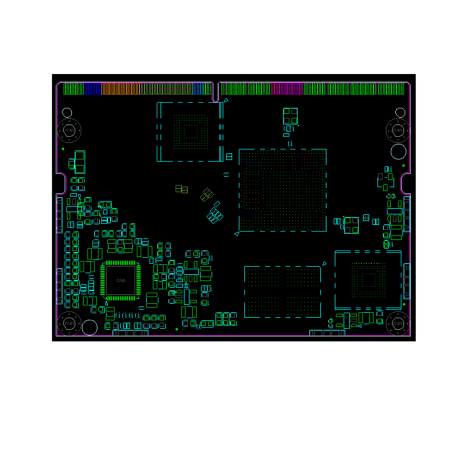

SC712B是一款采用瑞芯微RK3576芯片方案的SoM核心板,采用260PIN金手指的连接方式,板载电源管理,支持安卓和Linux操作系统,最大支持16GB运行内存。RK3576集成独立的NPU,可提供6TOPS int8算力,适合ARM集群服务器、AIoT等应用场景。SC712B核心板具有丰富的拓展接口,可根据行业应用场景需求定制产品。
主板型号:SC712B(260PIN版本)
主控芯片:RK3576
运行内存:LPDDR4/4X/5,最高可选16GB
内置存储:eMMC,最高可选256GB+
主板尺寸:50mm*69.6mm 8层通孔
主板特点:SODIMM260 PCIE插卡式
操作系统:支持Android/Linux
SC712B是一款专门面向行业定制需求的产品,ScenSmart可向行业客户提供底板的原理图设计、硬件设计、BSP调试开发、应用层开发等服务,可向客户交付完成的生产资料和软件开发环境,方便行业客户基于给己的业务场景进行二次开发,打造差异化的产品线。
目前SC712B支持的系统环境有安卓14、buildroot、Debian、Ubuntu、Kylin、Deepin等,后续将持续更新。硬件设计支持全国产化方案,如果您有项目需求,可点击提交,我们将提供免费的评估服务。
