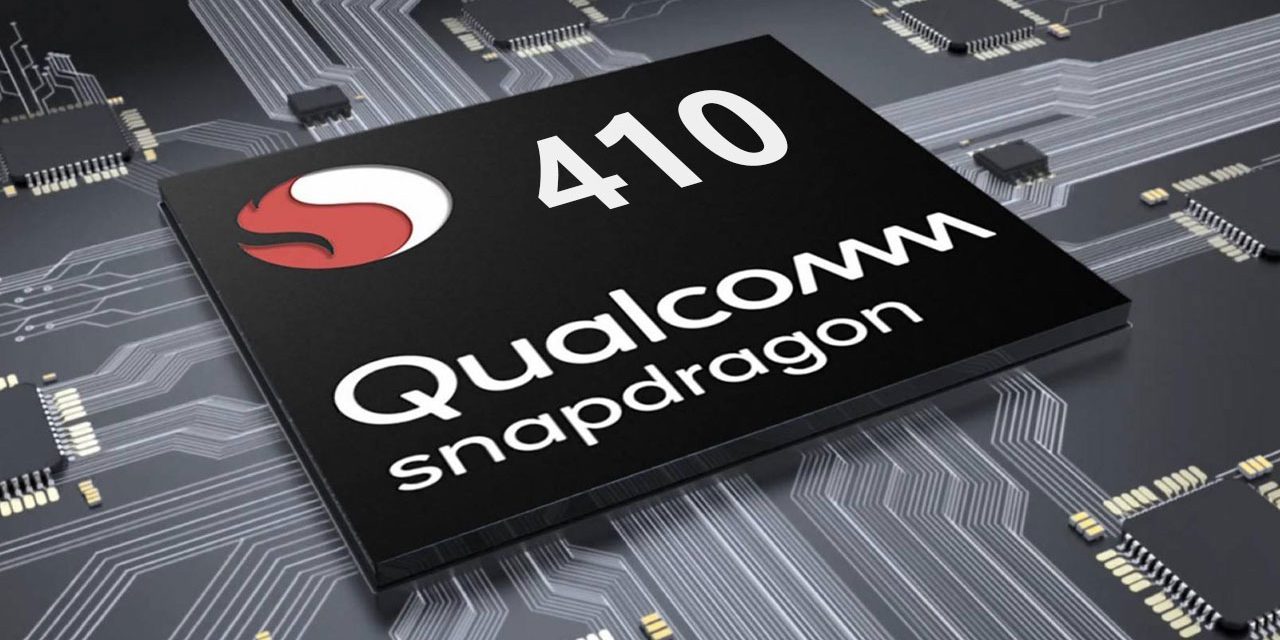

高通骁龙410是一款为智能手机和低功耗嵌入式系统设计的通用型SoC。在通讯领域和物联网、智能家居领域有广泛的应用。
Designed with both 32-bit and 64-bit CPU support, the Qualcomm® Snapdragon™ 410 processor supports both multi-SIM multimode 4G LTE for worldwide smartphones and versatile power efficiency for embedded applications.
Specifications
CPU
CPU Clock Speed: Up to 1.2 GHz
CPU Cores: 4x ARM Cortex A53, Quad-core CPU
CPU Architecture: 64-bit
Process
Process Technology: 28 nm LP
DSP
DSP Technology: Qualcomm® Hexagon™ DSP
Cellular Modem
Multi SIM: LTE Dual SIM
Next-generation Calling Services: Voice over Wi-Fi (VoWiFi) with LTE call continuity, HD Voice over 3G and VoLTE
LTE Category
Downlink LTE Category: LTE Category 4
LTE Downlink Features
Downlink Carrier Aggregation: 1×20 MHz downlink
Downlink QAM: Up to 64-QAM
LTE Uplink Features
Uplink Carrier Aggregation: 1×20 MHz
Uplink QAM: Up to 16-QAM
LTE Speed
LTE Peak Download Speed: 150 Mbps
LTE Peak Upload Speed: 50 Mbps
Cellular Technology
Cellular Technology: WCDMA (DC-HSDPA, DC-HSUPA), TD-SCDMA, CDMA 1x, EV-DO, GSM/EDGE
LTE Technology: LTE TDD, LTE FDD, LTE Broadcast
Wi-Fi
Wi-Fi Standards: 802.11n
Bluetooth
Bluetooth Version: Bluetooth 4.1
Location
Satellite Systems Support: Beidou, GLONASS, GPS
Location Support: Qualcomm® Location
Global Emergency Services Support: Assisted GPS, OTDOA (LTE-based positioning)
Advanced Location Features: Low Power Geofencing and Tracking
RF
RFFE: Qualcomm® RF Front-End (RFFE) solution
USB
USB Version: USB 2.0
Camera
Single Camera: Up to 13.5 MP
Video Capture (30 FPS): 1080p video capture
Video
Video Playback: Up to 1080p video playback
Codec Support: H.265 (HEVC), H.264 (AVC)
Display
Max On-Device Display: FHD+, WUXGA
Max External Display: Up to 720p
Display Pixels: 1920×1200
GPU
GPU Name: Qualcomm® Adreno™ 306 GPU
Charging
Qualcomm® Quick Charge™ Technology Support: Qualcomm® Quick Charge™ 2.0 technology
Memory
Memory speed: 533MHz
Memory Type: LPDDR2, LPDDR3, non-POP
Storage
eMMC: eMMC 4.51
SD: SD 3.0 (UHS-I)
Part
Part Numbers: 8916
