Realtek RTD1295 SoC Features

• System and Peripherals
  • ARM Cortex-A53 Quad-Core processor with floating-point unit and NEON SIMD engine embedded, supporting the 64/32-bit ARMv8 architecture
  • 1MB L2 Cache
  • ARM T820 MP3(3-core) GPU Mali-450 8-core equivalent

• ARM TrustZone for Trusted Execution Environment (TEE) with independent secure operating system and integrated secure hardware
• Supports OpenGL ES3.1, OpenCL 1.2 FP, DirectX 11.1, RenderScript Compute, ASTC, ARM Frame Buffer Compression
• Video DSP with HW acceleration
• Audio DSP with HW acceleration
• Supports up to 2GB DDR4/DDR3 SDRAM with dual channels of 16-bit data interface or up to 1GB LPDDR3/LPDDR2 SDRAM with 32-bit

Data interface

• Supports Serial Flash with dual I/O data interface
• Supports NAND Flash with maximum 72-bit ECC
• Supports eMMC 0
• Boot-ROM and OTP (One-Time Programmable ROM) for Secure-Boot and Key storage
• Integrates 10/100/1000 Ethernet MAC and PHY
• Integrates USB3.0 Super Speed

Dual-Role Device controller and PHY with supports for Type C receptacle

• Integrates dual USB2.0 High Speed Host/ Device controller and PHY
• Integrates hardware NAT and IP6 engine for AP router application
• Supports SDIO 3.0 interface
• Supports SD3.0 interface
• Supports RGMII/SGMII
• Supports SATA III
• Supports PCI 1/2.0
• Supports UART/I2C/GPIO/IrDA Rx/EJTAG/RTC
• Video and Picture Decoding Functions
  • 265 MP@L5.1 Main Tier
  • VP9 Profile 0
  • MPEG1, VCD 1.0/2.0, SVCD
  • Supports HD MPEG2 (up to MP@HL 1080i), ISO/IFO/VOB/TS
  • Supports HD MPEG4 SP/ASP (720p/1080i/1080p), Xvid
  • 264 BP@L3, MP and HP@L4.2
  • 264 MVC SHP@L4.1
  • VC-1 SP, MP, AP@L3
  • AVS JZ@L6.2, AVS+ 1080@60P
  • 263 Profile0/3@L70 1080@60P
  • Sorenson Spark L70
  • Theora 720P
  • VP8 1080@60P
  • HD JPEG with 32K x 32K maximum resolution
  • Full-pixel JPEG decode with high resolution zoom-in
• Video up-scaling from SD to Ultra HD (720p/1080i/1080p/2160p)
• Supports 24/30/36 bits deep color
• Video and Picture Encoding Functions
  • MPEG 4 SP@L5
  • 264 BP, MP, HP@L4.2
  • 264 MVC SHP 1080@30P
  • 263 Profile3@L70 1080@60P
  • HD JPEG in high resolution

• Video and Picture Color Spectrum
  • Deliver metadata using SMPTE ST2086, CEA-861.3 through HDMI 0a
  • Support conversion between ITU-R Recommendation BT.2020, BT.709 and other color
  • Support SMPTE ST 2084 EOTF/OETF

• Audio Interfaces and Functions
  • Built-in Audio Codec with 24-bit resolution
  • One I2S interface (2 channels) for Audio input/output
  • IEC 60958 (SPDIF) digital audio output
  • 1 CH down-mix
  • MPEG I Layer 1, 2, 3 (2-CH) and MPEG

II Layer 1, 2 (Multi-Channel)

• LPCM, ADPCM, ALAC, FLAC, AAC, WAV, AIFF, VSELP, and OGG Vorbis
• DTS HD, Dolby Digital Plus, TrueHD (Licensee Only)
• WMA/WMA Pro, Dolby Digital AC3, and DTS (Licensee Only)
• LPCM/ADPCM/MP3/AAC audio recording
• DTS Broadcast capable (Licensee Only)
• Dolby Digital Consumer Encoder capable (Licensee Only)
• Video Interfaces and Functions
  • TV encoder with 12-bit video D/A converters
  • NTSC and PAL TV systems
  • Composite analog video output
  • HDMI v2.0 transmitter/receiver with CEC, support for 3D over HDMI
  • Support for MHL v3.0 transmitter with integrated PHY
  • 3D De-interlacer
  • Bitmap OSD
  • Support for CGMS-A, WSS

• Cryptography
  • MD5
  • AES 128/192/256-bit with cipher modes of ECB/CBC/CTR/CTS
  • DES, TDES
  • SHA-1, SHA-256

• DRM and Link Protection
  • PlayReady, Widevine
  • 2, DTCP-IP

• Power Design
  • Support for Dynamic Voltage Frequency Scaling
• True Random Number Generator
• Miscellaneous
  • Thermal Sensor
  • Speed Sensor
  • Voltage sensor

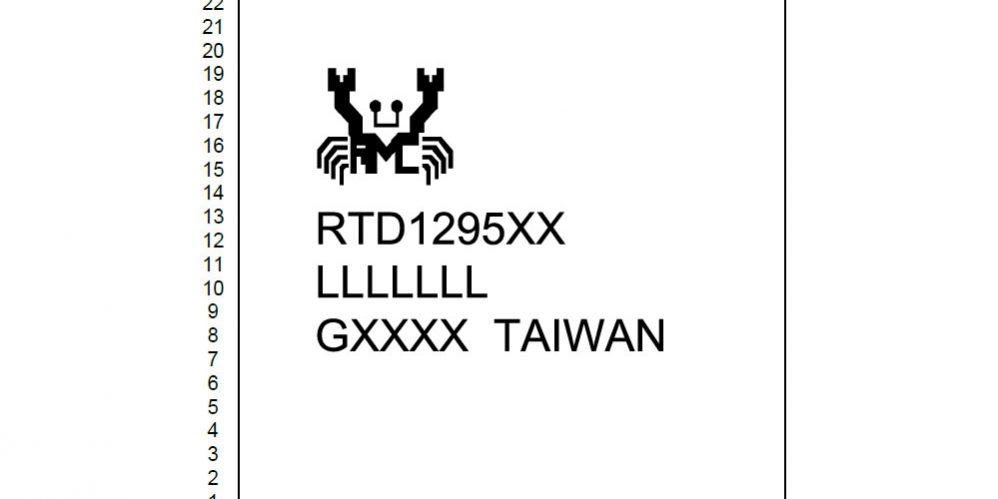

• Package: 15mm x 15mm, TFBGA 412 with 0.65mm ball pitch
