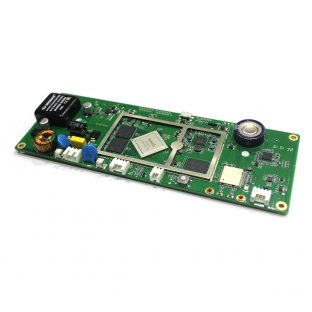

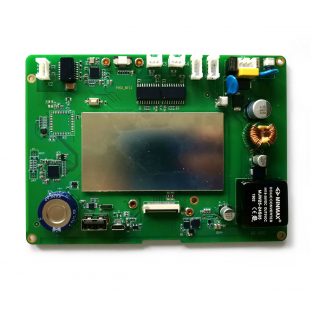

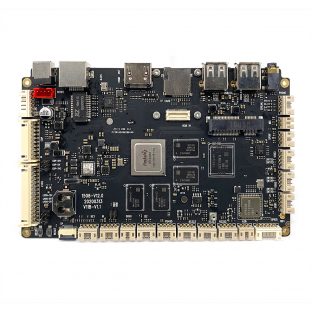

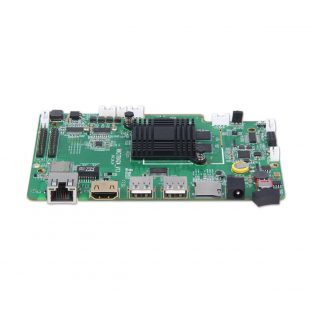

RK3288是瑞芯微旗下最早的旗舰级开源芯片，采用ARM A17架构，支持安卓和Linux系统。RK3288有着丰富的接口拓展能力，最为一款通用型SoC，广泛应用于商业显示设备、工控设备、视频会议终端、人脸识别设备和ARM集群服务器等产品。为方便用户选型，在此列出RK3288的详细规格参数。

Introduction to RK3288

1.1 Overview

RK3288 are low power, high performance processor for mobile phones, personal mobile internet device and other digital multimedia applications, and integrates quad-core Cortex- A17 with separately NEON coprocessor.

Many embedded powerful hardware engines provide optimized performance for high-end application. RK3288 supports almost full-format; includeH.265 decoder by 2160p@60fps,

H.264 decoder by 2160p@24fps, also support H.264/MVC/VP8 encoder by 1080p@30fps, high-quality JPEG encoder/decoder, and special image preprocessor and postprocessor.

Embedded 3D GPU makes RK3288 completely compatible with OpenGL ES1.1/2.0/3.0, OpenCL 1.2 and DirectX 11. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.

RK3288 has high-performance dual channel external memory interface (DDR3/DDR3L

/LPDDR2/LPDDR3) capable of sustaining demanding memory bandwidth, also provides a complete set of peripheral interface to support very flexible applications.

RK3288 LOT NO# end with “W” is upgraded version, could support HDCP2.2 and USB 1.1.

1.2 Features

The features listed below which may or may not be present in actual product, may be subject to the third party licensing requirements. Please contact Rockchip for actual product feature configurations and licensing requirements.

1.2.1 MicroProcessor

Quad-core ARM Cortex-A17 MPCore processor, a high-performance, low-power and cached application processor
Full implementation of the ARM architecture v7-A instruction set, ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing computation
Superscalar, variable length, out-of-order pipeline with dynamic branch prediction, 8- stage pipeline
Include VFP v3 hardware to support single and double-precision add, subtract, divide, multiply and accumulate, and square root operations
SCU ensures memory coherency between the four CPUs
Integrated 32KB L1 instruction cache , 32KB L1 data cache with 4-way set associative
1MB unified L2 Cache
Trust zone technology support
Full coresight debug solution
- Debug and trace visibility of whole systems
- ETM trace support
- Invasive and non-invasive debug
Six separate power domains for every core to support internal power switch and externally turn on/off based on different application scenario
- PD_A17_0: 1st Cortex-A17 + Neon + FPU + L1 I/D Cache
- PD_A17_1: 2ndCortex-A17 + Neon + FPU + L1 I/D Cache
- PD_A17_2: 3rdCortex-A17 + Neon + FPU + L1 I/D Cache
- PD_A17_3: 4thCortex-A17 + Neon + FPU + L1 I/D Cache
- PD_SCU: SCU + L2 Cache controller, and including PD_A17_0, PD_A17_1, PD_A17_2, PD_A17_3, debug logic
One isolated voltage domain to support DVFS

1.2.2 Memory Organization

Internal on-chip memory
- BootRom
- Internal SRAM for security and non-security access
External off-chip memory①
- Dual channel DDR3/DDR3L
- Dual channel LPDDR2
- Dual channel LPDDR3
- Dual channel async Nand Flash(include LBA Nand)
- Single channel async Nand Flash(include LBA Nand)
- Dual channel sync ONFI/toggle Nand Flash

1.2.3 Internal Memory

Internal BootRom
- Size : 20KB
- Support system boot from the following device :
  - 8bits Async Nand Flash
  - 8bits Toggle Nand Flash
  - SPI interface
  - eMMC interface
  - SDMMC interface
- Support system code download by the following interface:
  - USB OTG interface
- Internal SRAM
  - Size : 100KB
  - Support security and non-security access
  - Security or non-security space is software programmable
  - Security space can be 0KB,4KB,8KB,12KB,16KB, … up to 96KB by 4KB step

1.2.4 External Memory or Storage device

Dynamic Memory Interface (DDR3/DDR3L/LPDDR2/LPDDR3)
- Compatible with JEDEC standard DDR3-1333/DDR3L-1333/LPDDR2-1066/LPDDR3- 1066 SDRAM
- Support 2 channel, each channel 16 or 32bits data widths
- Support up to 2 ranks (chip selects) for each channel, totally 4GB (max) address space, maximum address space for one rank of channel 0 is also 4GB, which is software-configurable.
- 16bits/32bits data width is software programmable
- Programmable timing parameters to support DDR3/DDR3L/LPDDR2/LPDDR3 SDRAM from various vendor
- Advanced command reordering and scheduling to maximize bus utilization
- Low power modes, such as power-down and self-refresh for DDR3/LPDDR2/LPDDR3 SDRAM; clock stop and deep power-down for LPDDR2 SDRAM
- Embedded dynamic drift detection in the PHY to get dynamic drift compensation with the controller
- Programmable output and ODT impedance with dynamic PVT compensation
- Support one low-power work mode: power down DDR PHY and most of DDR IO except two cs and cke output signals, make SDRAM still in self-refresh state to prevent data

Nand Flash Interface
- Support dual channel async Nand Flash, each channel 8bits, up to 4 banks
- Support dual channel sync DDR Nand Flash, each channel 8bits, up to 4 banks
- Support LBA Nand Flash in async or sync mode
- Up to 60bits hardware ECC
For ToggleNand Flash, support DLL bypass and 1/4 or 1/8 clock adjust, maximum clock rate is 75MHz
For async Nand Flash, support configurable interface timing , maximum data rate is 16bit/cycle
Embedded special DMA interface to do data transfer
Also support data transfer together with general PERI_DMAC in SoC system
eMMC Interface
- Compatible with standard iNAND interface
- Support MMC4.5 protocol
- Provide eMMC boot sequence to receive boot data from external eMMC device
- Support FIFO over-run and under-run prevention by stopping card clock automatically
- Support CRC generation and error detection
- Embedded clock frequency division control to provide programmable baud rate
- Support block size from 1 to 65535Bytes
- 8bits data bus width

SD/MMC Interface
- Compatible with SD3.0, MMC 5
- Support FIFO over-run and under-run prevention by stopping card clock automatically
- Support CRC generation and error detection
- Embedded clock frequency division control to provide programmable baud rate
- Support block size from 1 to 65535Bytes
- Data bus width is 4bits

1.2.5 System Component

CRU (clock & reset unit)
- Support clock gating control for individual components inside RK3288
- One oscillator with 24MHz clock input and 5 embedded PLLs
- Up to 2.2GHz clock output for all PLLs
- Support global soft-reset control for whole SOC, also individual soft-reset for every components

PMU(power management unit)
- Multiple-configurable work modes to save power by different frequency or automatical clock gating control or power domain on/off control
- Lots of wakeup sources in different mode
- 4 separate voltage domains
- 12 separate power domains, which can be power up/down by software based on different application scenes

Timer
- 8 on-chip 64bits Timers in SoC with interrupt-based operation
- Provide two operation modes: free-running and user-defined count
- Support timer work state checkable
- Fixed 24MHz clock input

PWM
- Four on-chip PWMs with interrupt-based operation
- Programmable pre-scaled operation to bus clock and then further scaled
- Embedded 32-bit timer/counter facility
- Support capture mode
- Support continuous mode or one-shot mode
- Provides reference mode and output various duty-cycle waveform

Watch Dog
- 32 bits watchdog counter width
- Counter clock is from apb bus clock
- Counter counts down from a preset value to 0 to indicate the occurrence of a timeout
- WDT can perform two types of operations when timeout occurs:
  - Generate a system reset
  - First generate an interrupt and if this is not cleared by the service routine by the time a second timeout occurs then generate a system reset
- Programmable reset pulse length
- Totally 16 defined-ranges of main timeout period

Interrupt Controller
- Support 3 PPI interrupt source and 112 SPI interrupt sources input from different components inside RK3288
- Support 16 software-triggered interrupts
- Input interrupt level is fixed , only high-level sensitive
- Two interrupt outputs (nFIQ and nIRQ) separately for eachCortex-A17, both are low- level sensitive
- Support different interrupt priority for each interrupt source, and they are always software-programmable

DMAC
- Micro-code programming based DMA
- The specific instruction set provides flexibility for programming DMA transfers
- Linked list DMA function is supported to complete scatter-gather transfer
- Support internal instruction cache
- Embedded DMA manager thread
- Support data transfer types with memory-to-memory, memory-to-peripheral, peripheral-to-memory
- Signals the occurrence of various DMA events using the interrupt output signals
- Mapping relationship between each channel and different interrupt outputs is software-programmable
- Two embedded DMA controller, BUS_DMAC is for bus system, PERI_DMAC is for peripheral system
- BUS_DMAC features:
  - 6 channels totally
  - 6 hardware request from peripherals
  - 2 interrupt output
  - Dual APB slave interface for register config, designated as secure and non- secure
  - Support trustzone technology and programmable secure state for each DMA channel
- PERI_DMAC features:
  - 7 channels totally
  - 9 hardware request from peripherals
  - 2 interrupt output
  - Not support trustzone technology

Security system
- Support trustzone technology for the following components inside RK3288
  - Cortex-A17, support security and non-security mode, switch by software
  - BUS_DMAC, support some dedicated channels work only in security mode
  - eFuse, only accessed by Cortex-A17 in security mode
  - Internal memory , part of space is addressed only in security mode, detailed size

is software-programmable together with TZMA(trustzone memory adapter) and TZPC(trustzone protection controller)

Embedded encryption and decryption engine
- Support AES 128/192/256 bits key mode, ECB/CBC/CTR chain mode, Slave/FIFO mode
- Support DES/3DES (ECB and CBC chain mode) , 3DES (EDE/ EEE key mode), Slave/FIFO mode
- Support SHA1/SHA256/MD5 (with hardware padding) HASH function, FIFO mode only
- Support 160 bit Pseudo Random Number Generator (PRNG)
- Support 256 bit True Random Number Generator (PRNG)
Support PKA 512/1024/2048 bit Exp ModulatorSupport security boot
Support security debug

1.2.6 Video CODEC

Shared internal memory and bus interface for video decoder and encoder②
Embedded memory management unit(MMU)
- Real-time video decoder of MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, VP8, MVC
- Error detection and concealment support for all video formats
- Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for 264

n H.264 up to HP level 5.1 : 2160p@24fps (3840×2160)③

MPEG-4 up to ASP level 5 : 1080p@60fps (1920×1088)

n MPEG-2 up to MP : 1080p@60fps (1920×1088)

n MPEG-1 up to MP : 1080p@60fps (1920×1088)

n H.263 : 576p@60fps(720×576)

n VC-1 up to AP level 3 : 1080p@30fps (1920×1088)

n VP8 : 1080p@60fps (1920×1088)

n AVS : 1080p@60fps (1920×1088)

n MVC : 1080p@60fps (1920×1088)

For AVS, 4:4:4 sampling not supported
For 264, image cropping not supported
For MPEG-4,GMC(global motion compensation)not supported
For VC-1, upscaling and range mapping are supported in image post-processor
For MPEG-4 SP/H.263, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit

1.2.7 Video Encoder

Support video encoder for H.264 (BP@level4.0, MP@level4.0, HP@level4.0), MVC and VP8
Only support I and P slices, not B slices
Support error resilience based on constrained intra prediction and slices
Input data format:
- YCbCr 4:2:0 planar
- YCbCr 4:2:0 semi-planar
- YCbYCr 4:2:2
- CbYCrY 4:2:2 interleaved
- RGB444 and BGR444
- RGB555 and BGR555
- RGB565 and BGR565
- RGB888 and BRG888

u RGB101010 and BRG101010

Image size is from 96×96 to 1920×1088(Full HD)
Maximum frame rate is up to 30fps@1920×1080③
Bit rate supported is from 10Kbps to 20Mbps

1.2.8 HEVC Decoder

Main/Main10 HEVC/H.265 decoder, 4k@60FPS
Support up to 4096×2304 resolution
Embedded memory management unit(MMU)
Stream error detector (28 IDs)
Internal 128k cache for bandwidth reduction
Multi-clock domains and auto clock-gating design for power saving

1.2.9 JPEG CODEC

JPEG decoder

n Input JPEG file : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 sampling formats

n Output raw image : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 semi-planar

Decoder size is from 48×48 to 8176×8176(66.8Mpixels)
Support JPEG ROI(region of image) decode
Maximum data rate④ is up to 76million pixels per second
Embedded memory management unit(MMU)
JPEG encoder
- Input raw image :
  - YCbCr 4:2:0 planar
  - YCbCr 4:2:0 semi-planar
  - YCbYCr 4:2:2
  - CbYCrY 4:2:2 interleaved
  - RGB444 and BGR444
  - RGB555 and BGR555
  - RGB565 and BGR565
  - RGB888 and BRG888

u RGB101010 and BRG101010

Output JPEG file: JFIF file format 1.02 or Non-progressive JPEG
Encoder image size up to 8192×8192(64million pixels) from 96×32
Maximum data rate④ up to 90million pixels per second
Embedded memory management unit(MMU)

1.2.10 Image Enhancement

Image pre-processor
- Only used together with HD video encoder inside RK3288, not support stand-alone mode
- Provides RGB to YCbCr 4:2:0 color space conversion, compatible with BT601, BT709 or user defined coefficients
- Provides YCbCr4:2:2 to YCbCr4:2:0 color space conversion
- Support cropping operation from 8192×8192 to any supported encoding size
- Support rotation with 90 or 270 degrees

Video stabilization
- Work in combined mode with HD video encoder inside RK3288 and stand-alone mode
- Adaptive motion compensation filter
- Support scene detection from video sequence, encodes key frame when scene change noticed

Image Post-Processor(embedded inside video decoder)
- Combined with HD video decoder and JPEG decoder, post-processor can read input data directly from decoder output to reduce bus bandwidth
Also work as a stand-alone mode, its input data is from image data stored in external memory
Input data format:
- Any format generated by video decoder in combined mode
- YCbCr 4:2:0 semi-planar
- YCbCr 4:2:0 planar
- YCbYCr 4:2:2
- YCrYCb 4:2:2
- CbYCrY 4:2:2
- CrYCbY 4:2:2
Output data format:
- YCbCr 4:2:0 semi-planar
- YCbYCr 4:2:2
- YCrYCb 4:2:2
- CbYCrY 4:2:2
- CrYCbY 4:2:2
- Fully configurable ARGB channel lengths and locations inside 32bits, such as ARGB8888, RGB565, ARGB4444
Input image size:
- Combined mode: from 48×48 to 8176×8176 (66.8Mpixels)
- Stand-alone mode: width from 48 to 8176, height from 48 to 8176, and maximum size limited to 7Mpixels
- Step size is 16 pixels
Output image size: from 16×16 to 1920×1088 (horizontal step size 8, vertical step size 2)
Support image up-scaling:
- Bicubic polynomial interpolation with a four-tap horizontal kernel and a two-tap vertical kernel
- Arbitrary non-integer scaling ratio separately for both dimensions
- Maximum output width is 3x input width
- Maximum output height is 3x input height
Support image down-scaling:
- Arbitrary non-integer scaling ratio separately for both dimensions
- Unlimited down-scaling ratio
Support YUV to RGB color conversion, compatible with 601-5, BT.709 and user definable conversion coefficient
Support dithering (2×2 ordered spatial dithering) for 4/5/6bit RGB channel precision
Support programmable alpha channel and alpha blending operation with the following overlay input formats:
- 8bit alpha +YUV444, big endian channel order with AYUV8888
- 8bit alpha +24bit RGB, big endian channel order with ARGB8888
Support deinterlacing with conditional spatial deinterlace filtering, only compatible with YUV420 input format
Support RGB image contrast/brightness/color saturation adjustment
Support image cropping & digital zoom only for JPEG or stand-alone mode
Support picture in picture
Support image rotation (horizontal flip, vertical flip, rotation 90,180 or 270 degrees)
Image Enhancement-Processor (IEP)
- Image format
  - Input data: XRGB/RGB565/YUV420/YUV422
  - Output data: ARGB/RGB565/YUV420/YUV422
  - The format ARGB/XRGB/RGB565/YUV support swap
  - Support YUV semi-planar/planar
  - Support BT601_l/BT601_f/BT709_l/BT709_f color space conversion
  - Support RGB dither up/down conversion
  - Support YUV up/down sampling conversion

Max source image resolution: 8192×8192
Max scaled image resolution: 4096×4096
Enhancement
- Gamma adjustment with programmable mapping table
- Hue/Saturation/Brightness/Contrast enhancement
- Color enhancement with programmable coefficient
- Detail enhancement with filter matrix up to 9×9
- Edge enhancement with filter matrix up to 9×9
- Programmable difference table for detail enhancement
- Programmable distance table for detail and edge enhancement
Noise reduction
- Compression noise reduction with filter matrix up to 9×9
- Programmable difference table for compression noise reduction
- Programmable distance table for compression noise reduction
- Spatial sampling noise reduction
- Temporal sampling noise reduction
- Optional coefficient for sampling noise reduction
Scaling
- Horizontal down-scaling with vertical down-scaling
- Horizontal down-scaling with vertical up-scaling
- Horizontal up-scaling with vertical down-scaling
- Horizontal up-scaling with vertical up-scaling
- Arbitrary non-integer scaling ratio, from 1/16 to 16
Deinterlace
- Input 4 fields, output 2 frames mode
- Input 4 fields, output 1 frames mode
- Input 2 fields, output 1 frames mode
- Programmable motion detection coefficient
- Programmable high frequency factor
- Programmable edge interpolation parameter
- Source width up to 1920
Interface
- Programmable direct path to VOP
Embedded memory management unit(MMU)

1.2.11 Graphics Engine

3D Graphics Engine :
- ARM Mali-T764 GPU core
- High performance OpenGL ES1.1/2.0/3.0, OpenCL 1.2, DirectX 11(W version only)
- Embedded 4 shader cores with shared hierarchical tiler
- Provide MMU and L2 Cache with 256KB size
- Image quality using double-precision FP64, and anti-aliasing

2D Graphics Engine (RGA2):
- BitBlit with Stretch Blit, Simple Blit and Filter Blit
- Color fill with gradient fill, and pattern fill
- Line drawing with anti-aliasing and specified width
- High-performance stretch and shrink
- Monochrome expansion for text rendering
- ROP2,ROP3,ROP4
- Alpha blending modes including global alpha, per pixel alpha, porter-duff and fading
- 8K x 8K input and 2K x 2K output raster 2D coordinate system
- Arbitrary degrees rotation with anti-aliasing on every 2D primitive
- Blending, scaling and rotation are supported in one pass for Bitbilt
- Source format:

u ABGR8888, XBGR888, ARGB8888, XRGB888

u RGB888, RGB565

u RGBA5551, RGBA4444

YUV420 planar, YUV420 semi-planar
YUV422 planar, YUV422 semi-planar
BPP8, BPP4, BPP2, BPP1

Destination formats:

u ABGR8888, XBGR888, ARGB8888, XRGB888

u RGB888, RGB565

u RGBA5551, RGBA4444

YUV420 planar, YUV420 semi-planar only in filter and pre-scale mode
YUV422 planar, YUV422 semi-planar only in filter and pre-scale mode

1.2.12 Video IN/OUT

Camera Interface(DVP interface only)
- Support up to 5M pixels
- 8bits BT656(PAL/NTSC) interface
- 16bits BT601 DDR interface
- 8bits/10bits/12bits raw data interface
- YUV422 data input format with adjustable YUV sequence
- YUV422,YUV420 output format with separately Y and UV space
- Support picture in picture (PIP)
- Support simple image effects such as arbitrary (sepia), Negative, Art freeze, Embossing etc.
- Support static histogram statistics and white balance statistics
- Support image crop with arbitrary windows
- Support scale up/down from 1/8 to 8 with arbitrary non-integer ratio

Camera Interface and Image Processer(Interface and Image Processing)
- Maximum input resolution of 14M(4416×3312) pixels
- Main scaler with pixel-accurate up- and down-scaling to any resolution between 4416×3312 and 32×16 pixel in processing mode
- Self scaler with pixel-accurate up- and down-scaling to any resolution between 1920×1080 and 32×16 pixel in processing mode
- support of semiplanar NV21 color storage format
- support of independent image cropping on main and self path
- ITU-R BT 601/656 compliant video interface supporting YCbCr or RGB Bayer data
- 12 bit camera interface
- 12 bit resolution per color component internally
- YCbCr 4:2:2 processing
- Hardware JPEG encoder incl. JFIF1.02 stream generator and programmable
- quantization and Huffman tables
- Windowing and frame synchronization
- Frame skip support for video (e.g. MPEG-4) encoding
- Macro block line, frame end, capture error, data loss interrupts and sync. (h_start, v_start) interrupts
- Luminance/chrominance and chrominance blue/red swapping for YUV input signals
- Continuous resize support
- Color processing (contrast, saturation, brightness, hue, offset, range)
- Display-ready RGB output in self-picture path (RGB888, RGB666 and RGB565)
- Rotation unit in self-picture path (90°, 180°, 270° and h/v flipping) for RGB output
- Read port provided to read back a picture from system memory
- Simultaneous picture read back, resizing and storing through self path while main
- path captures the camera picture
- Black level compensation
- Four channel Lens shade correction (Vignetting)
Auto focus measurement
White balancing and black level measurement
Auto exposure support by brightness measurement in 5×5 sub windows
Defect pixel cluster correction unit (DPCC) supports on the fly and table based pixel correction
De-noising pre filter (DPF)
Enhanced color interpolation (RGB Bayer demosaicing)
Chromatic aberration correction
Combined edge sensitive Sharpening / Blurring filter (Noise filter)
Color correction matrix (cross talk matrix)
Global Tone Mapping with wide dynamic range unit (WDR)
Image Stabilization support and Video Stabilization Measurement
Flexible Histogram calculation
Digital image effects (Emboss, Sketch, Sepia, B/W (Grayscale), Color Selection, Negative image, sharpening)
Solarize effect through gamma correction
Display Interface
- Embedded two channel display interfaces: VOP_BIG and
- Parallel Display interface
  - Parallel RGB LCD Interface:

Ø 30-bit(RGB101010),24-bit(RGB888),18-bit(RGB666), 15-bit(RGB565)

Serial RGB LCD Interface(optional):
- 2×12-bit, 3×8-bit(RGB delta support), 3×8-bit+dummy
MCU LCD interface(optional):
- i-8080(up to 24-bit RGB), Hold/Auto/Bypass modes
TV Interface: ITU-R 656(8-bit, 480i/576i/1080i)
DDR output interface:
- parallel RGB and 2×12-bit serial RGB
- Single or dual clock out
dither down:
- allegro,FRC
- gamma after dither
Max output resolution: 3840×2160 (for VOP_BIG), 2560×1600(for VOP_LIT)
Scaning timing 8192×4096

Display process
- Background layer:
  - programmable 24-bit color
- Win0 (Video0) layer:
  - RGB888, ARGB888, RGB565, YCbCr422, YCbCr420, YCbCr444
  - Support virtual display
  - 1/8 to 8 scaling-down and scaling-up engine:
    - Scale up using bicubic or bilinear;
    - Scale down using bilinear or average;
    - 4 Bicubic tables : precise,spline,catrom,mitchell;
    - coord 8bit, coe 8bit signed
  - x-mirror,y-mirror
- Win1 (Video1) layer:
  - RGB888, ARGB888, RGB565, YCbCr422, YCbCr420, YCbCr444
  - Support virtual display
  - 1/8 to 8 scaling-down and scaling-up engine
    - Scale up using bicubic or bilinear;
    - Scale down using bilinear otraverage;
    - 4 Bicubic tables : precise,spline,catrom,mitchell;
    - coord 8bit, coe 8bit signed
  - x-mirror,y-mirror
- Win2 (UI 0) layer:

Ø RGB888, ARGB888, RGB565, 1/2/4/8bpp

Support virtual display
4 display regions
x-mirror,y-mirror

Win3 (UI 1) layer:

Ø RGB888, ARGB888, RGB565, 1/2/4/8bpp

Support virtual display
4 display regions
x-mirror,y-mirror

Hardware cursor:

Ø RGB888, ARGB888, RGB565, 1/2/4/8bpp

Support two size: 32×32,64×64,or 128×128

Overlay:
- Win0/Win1/Win2/Win3 256 level alpha blending(support pre-multiplied alpha)
- Win0/Win1/Win2/Win3 overlay position exchangeable
- Win0/Win1/Win2/Win3 Transparency color key
- Win0/Win1/Win2/Win3 global/per-pixel alpha
- HWC 256 level alpha blending
- HWC global/per-pixel alpha
Others
- 3 x 256 x 8 bits display LUTs
- YcbCr2RGB(rec601-mpeg/rec601-jpeg/rec709/BT2020)and RGB2YcbCr
- Support BCSH function
- Support CABC function
- QoS request signals
- Gather transfer (Max 8)
- Y/UV scheduler
- Addr alignment
- Support IEP direct path(win0/1/2/3)
- Embedded memory management unit(MMU)
- Support MIPI flow control

1.2.13 HDMI

Single Physical Layer PHY with support for HDMI 1.4 and 2.0 operation
For HDMI operation, support for the following:
- Up to 1080p at 120 Hz and 4k x 2k at 60 Hz HDTV display resolutions and up to QXGA graphic display resolutions
- 3-D video formats
- Up to 10-bit Deep Color modes
- Up to 18 Gbps aggregate bandwidth
- 5–600 MHz input reference clock
- HPD input analog comparator
Link controller flexible interface with 30-, 60- or 120-bit SDR data access
RK3288 Supports HDCP 4
RK3288 W version support 4K YUV 4:2:0 output and HDCP 2

1.2.14 LVDS (RK3288-C has not this function)

Comply with the TIA/EIA-644-A LVDS standard
Combine LVTTL IO, support LVDS/LVTTL data output
Support reference clock frequency range from 10Mhz to 5Mhz
Support LVDS RGB 30/24/18bits color data transfer
Support VESA/JEIDA LVDS data format transfer
Support LVDS single channel and double channel data transfer, every channel include 5 data lanes and 1 clock lane

1.2.15 MIPI PHY

Embedded 3 MIPI PHY, MIPI 0 only for TX, MIPI 1 for TX and RX, MIPI 2 only for RX
Support 4 data lane, providing up to 4Gbps data rate
Support 1080p @ 60fps output
Lane operation ranging from 80 Mbps to 1 Gbps in forward direction

1.2.16 eDP PHY

Support 4Kx2K @ 30fps
Compliant with eDP TM Specification, version 1
Up to 4 physical lanes of 2.7/1.62 Gbps/lane(HBR2/HBR/RBR)
RGB, YCbCr 4:4:4, YCbCr 4:2:2 and 8/10/12 bit per componentvideo format
Support VESA DMT and CVT timing standards
Fully support EIA/CEA-861Dvideo timing and Info Frame structure
Hot plug and unplug detection and link status monitor
Support DDC/CI and MCCS command transmission when the monitor includes a display
Supports Panel Self Refresh(PSR)

1.2.17 Audio Interface

I2S/PCM with 8ch
- Support 8-channels audio transmitting in I2S mode and 2-channels in PCM
- Support 2-channels audio receiving in I2S and PCM mode
- Audio resolution from 16bits to 32bits
- Sample rate up to 192KHz
- Provides master and slave work mode, software configurable
- Support 3 I2S formats (normal, left-justified, right-justified)
- Support 4 PCM formats(early, late1, late2, late3)
- I2S and PCM mode cannot be used at the same time

SPDIF
- Support two 16-bit audio data store together in one 32-bit wide location
- Support biphase format stereo audio data output
- Support 16 to 31 bit audio data left or right justified in 32-bit wide sample data buffer
- Support 16, 20, 24 bits audio data transfer in linear PCM mode
- Support non-linear PCM transfer

1.2.18 Connectivity

SDIO interface
- Embedded 2 SDIO interface
- Compatible with SDIO 3.0 protocol
- 4bits data bus width

High-speed ADC stream interface
- Support single-channel 8bits/10bits interface
- DMA-based and interrupt-based operation
- Support 8bits TS stream interface

TS interface
- Supports two TS input channels and one TS output
- Supports 4 TS Input Mode: sync/valid mode in the case of serial TS input; nosync/valid mode, sync/valid, sync/burst mode in the case of parallel TS
- Supports serial and parallel output mode with PCR adjustment, and lsb-msb or msb- lsb bit ordering can be chosen in the serial output
Supports 2 TS sources: demodulators and local
Supports 2 Built-in PTIs(Programmable Transport Interface) to process TS simultaneously, and Each PTI supports:
- 64 PID
- TS descrambling with 16 sets of Control Word under CSA v2.0 standard, up to 104Mbps
- 16 PES/ES filters with PTS/DTS extraction and ES start code
- 4/8 PCR extraction channels
- 64 Section filters with CRC check, and three interrupt mode: stop per unit, full- stop, recycle mode with version number check
- PID done and error interrupts for each channel
- PCR/DTS/PTS extraction interrupt for each channel
Supports 1 PVR (Personal Video Recording) output
1 built-in multi-channel DMA
PS2 interface
- Support PS/2 data communication protocol
- Support PS/2 master mode
- Software programmable timing requirement to support max PS/2 clockfrequency to 33KHZ
- Support status tobe queriedfor data communication error
- Support interrupt mode for data communication finish
- Support timeout mechnism for data communication
- Support interrupt mode for data communication timeout

Smart Card
- support card activation and deactivation
- support cold/warm reset
- support Answer to Reset (ATR) response reception
- support T0 for asynchronous half-duplex character transmission
- support T1 for asynchronous half-duplex block transmission
- support automatic operating voltage class selection
- support adjustable clock rate and bit (baud) rate
- support configurable automatic byte repetition

Host interface
- Low Pin Count interface(8 inputs/16 outputs or 16 inputs/8 outputs)
- No mandatory Tri-State signals
- All signals driven using source synchrounous clock.(2 DDR clock signals per direction for TX and RX paths)
- Low latency throught serialization/deserialization
- Transport clocks and bus clock are independent
- Support Asymmetric(Host/Peripheral) communication operations
- Support multiple outstanding transactions reads, writes and interrupts
- Support Mirror Mode to enable self tett with identical device

GPS Interface
- Single chip, integrate GPS bb with cpu
- 32 DMA channels for AHB master access
- Complete 1-band, C/A, and NMEA-0183 compatibility
- Support reference frequencies 368MHz
- High sensitivity for indoor fixes
- Low power consumption
- Low cost with smaller size
- Multi modes support both standalone GPS and A_GPS

GMAC 10/100/1000M Ethernet Controller
- Supports 10/100/1000-Mbps data transfer rates with the RGMII interfaces
- Supports 10/100-Mbps data transfer rates with the RMII interfaces
- Supports both full-duplex and half-duplex operation
  - Supports CSMA/CD Protocol for half-duplex operation
  - Supports packet bursting and frame extension in 1000 Mbps half-duplex operation
  - Supports IEEE 802.3x flow control for full-duplex operation
  - Optional forwarding of received pause control frames to the user application in full-duplex operation
  - Back-pressure support for half-duplex operation
  - Automatic transmission of zero-quanta pause frame on deassertion of flow control input in full-duplex operation
- Preamble and start-of-frame data (SFD) insertion in Transmit, and deletion in Receive paths
- Automatic CRC and pad generation controllable on a per-frame basis
- Options for Automatic Pad/CRC Stripping on receive frames
- Programmable InterFrameGap (40-96 bit times in steps of 8)
- Supports a variety of flexible address filtering modes
- Separate 32-bit status returned for transmission and reception packets
- Supports IEEE 802.1Q VLAN tag detection for reception frames
- Support detection of LAN wake-up frames and AMD Magic Packet frames
- Support checksum off-load for received IPv4 and TCP packets encapsulated by the Ethernet frame
- Support checking IPv4 header checksum and TCP, UDP, or ICMP checksum encapsulated in IPv4 or IPv6 datagrams
- Comprehensive status reporting for normal operation and transfers with errors
- Automatic generation of PAUSE frame control or backpressure signal to the GMAC core based on Receive FIFO-fill (threshold configurable) level
- Handles automatic retransmission of Collision frames for transmission
- Discards frames on late collision, excessive collisions, excessive deferral and underrun conditions

SPI Controller
- 3 on-chip SPI controller inside RK3288
- Support serial-master and serial-slave mode, software-configurable
- DMA-based or interrupt-based operation
- Embedded two 32x16bits FIFO for TX and RX operation respectively
- Support 2 chip-selects output in serial-master mode

Uart Controller
- 5 on-chip uart controller inside RK3288
- DMA-based or interrupt-based operation
- For all UART, two 64Bytes FIFOs are embedded for TX/RX operation respectively
- Support 5bit,6bit,7bit,8bit serial data transmit or receive
- Standard asynchronous communication bits such as start, stop and parity
- Support different input clock for uart operation to get up to 4Mbps or other special baud rate
- Support non-integer clock divides for baud clock generation
- Auto flow control mode is for all UART, except UART_DBG

I2C controller
- 6 on-chip I2C controller in RK3288
- Multi-master I2C operation
- Support 7bits and 10bits address mode
- Software programmable clock frequency and transfer rate up to 400Kbit/s in the fast

mode

Serial 8bits oriented and bidirectional data transfers can be made at up to 100Kbit/s in the standard mode
GPIO
- Totally 160 GPIOs
- All of GPIOs can be used to generate interrupt to Cortex-A17
- GPIO0 can be used to wakeup system from low-power mode
- The pull direction(pullup or pulldown) for all of GPIOs are software-programmable
- All of GPIOs are always in input direction in default after power-on-reset
- The drive strength for all of GPIOs is software-programmable

USB 0
- Embedded 2 USB Host2.0 interfaces
- USB host (ECHI controller) only supports USB2.0, and USB1.1 (W version). USB host (DW controller) support 0/USB1.1.
- Supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps) mode
- Provides 16 host mode channels
- Support periodic out channel in host mode

USB 0
- Compatible with USB 0 specification
- Supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps) mode
- Support up to 9 device mode endpoints in addition to control endpoint 0
- Support up to 6 device mode IN endpoints including control endpoint 0
- Endpoints 1/3/5/7 can be used only as data IN endpoint
- Endpoints 2/4/6 can be used only as data OUT endpoint
- Endpoints 8/9 can be used as data OUT and IN endpoint
- Provides 9 host mode channels

USIC Interface
- Compliant with the USB2.0 Specification and Enhanced Host Controller Interface Specification 0
- 1 Port USIC PHY Interface Operates in host mode
- Built-in one 512×64 bits FIFO
- Internal DMA with scatter/gather function
